Xhorse EEPROM Clip Adapter For VVDI PROG Xhorse EEPROM Clip Adapter For VVDI PROG

ED541
0.1kg
Auto Key Programmer
$65.99 $55.99 15%
-
+

Xhorse EEPROM Clip Adapter For VVDI PROG

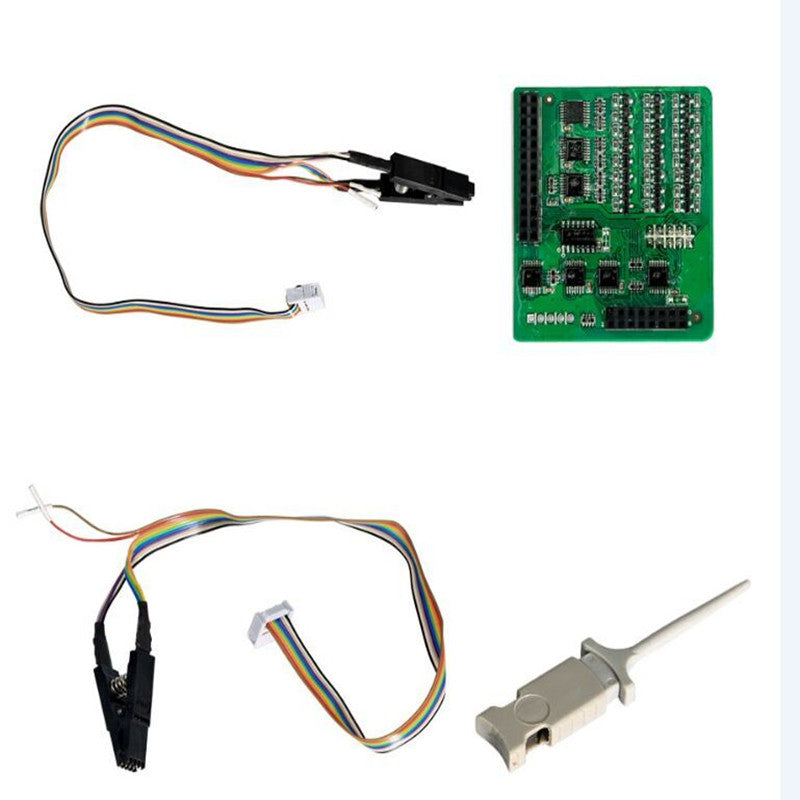

EEPROM CLIP ADAPTER Instruction:

Use appropriate Clip cable to clip the chip. Ensure reliable electrical connecttion! Some circuit need use the probe!

Probe Instruction:

Need to decide whether to use it with a specific circuit.
Connect "GND" of cable and hook MCU Xtal pin to avoid the impact of MCU on R&W



Cable definition:

Black wire-Clip Pin 1
White wite-Clip pin 2
Gray wire-Clip Pin 3
Purple wire-Clip Pin 4
Blue wire-Clip pin 5
Green wite-Clip pin 6
Orange wire-Clip pin 7
Yellow wire-Clip Pin 8
Red wire-For Probe
Brown wire -For Probe

Note:

Please you use the latest software version above 4.6.1 version!

Package List:

1*Xhorse VVDI Prog EEPROM Clip Adapter



Xhorse EEPROM Clip Adapter For VVDI PROG

EEPROM CLIP ADAPTER Instruction:

Use appropriate Clip cable to clip the chip. Ensure reliable electrical connecttion! Some circuit need use the probe!

Probe Instruction:

Need to decide whether to use it with a specific circuit.
Connect "GND" of cable and hook MCU Xtal pin to avoid the impact of MCU on R&W



Cable definition:

Black wire-Clip Pin 1
White wite-Clip pin 2
Gray wire-Clip Pin 3
Purple wire-Clip Pin 4
Blue wire-Clip pin 5
Green wite-Clip pin 6
Orange wire-Clip pin 7
Yellow wire-Clip Pin 8
Red wire-For Probe
Brown wire -For Probe

Note:

Please you use the latest software version above 4.6.1 version!

Package List:

1*Xhorse VVDI Prog EEPROM Clip Adapter
