XTOOL EZ400 PRO Diagnostic Tool Xtool EZ400 Auto Diagnostic Tool + IMMO+Oil Service + EPB + TPS Support WiFi and Android XTOOL EZ400 PRO Diagnostic Tool Xtool EZ400 Auto Diagnostic Tool + IMMO+Oil Service + EPB + TPS Support WiFi and Android

KP211
5.8kg
Car Diagnostic Tool
$569.00 $469.00 18%
-
+

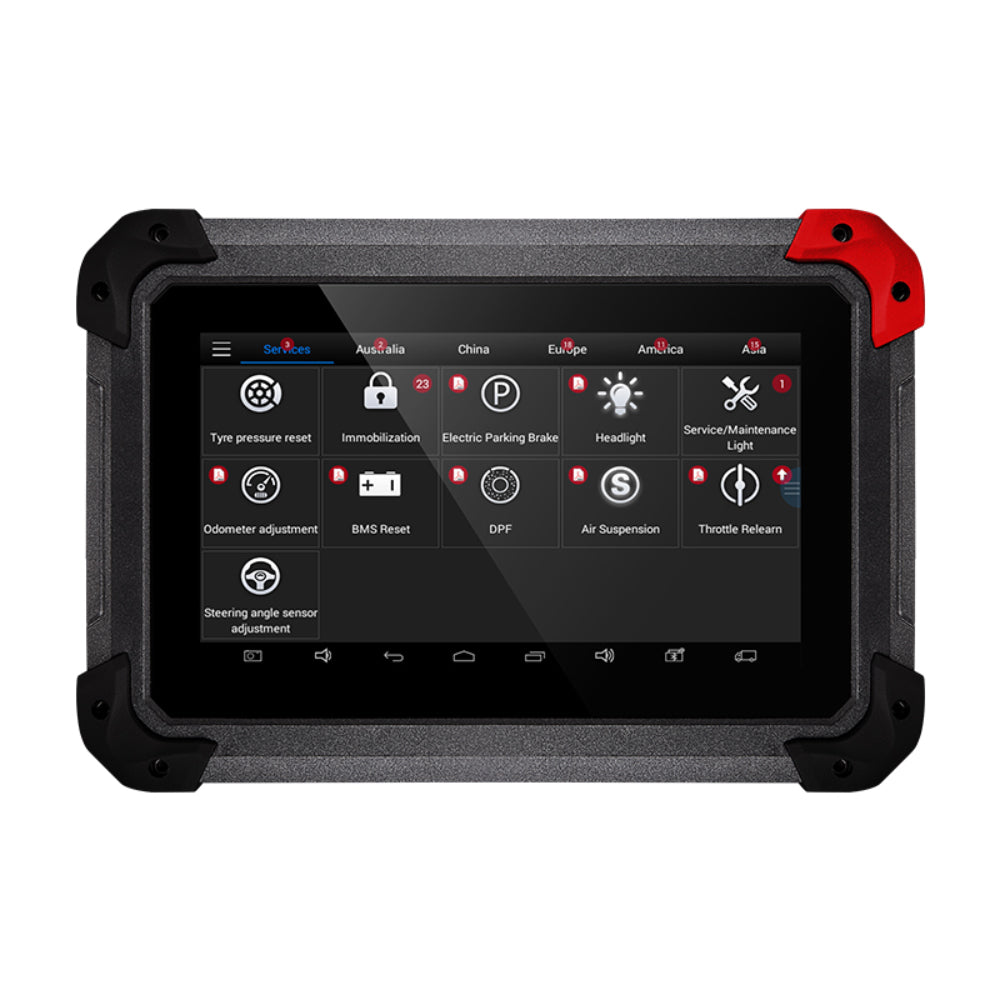

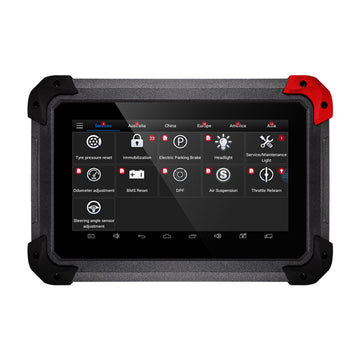

Xtool EZ400 Pro is Android Tablet and WiFi diagnostic Tool, with extensive vehicle coverage for most European, US, Asian makes. Support One-click software update via WIFI, Wireless diagnosis via Bluetooth.

Top reasons to get XTOOL EZ400 Pro :

  •   Easy registration with EZ400 PRO connected to WIFI
  •  Wireless diagnosis via Bluetooth
  •  One-click software update via WIFI
  •  Remote access
  • Diagnosis reports in PDF file
  •  Record and playback live data
  •  7 inch multi-touch screen
  •  On-board battery
  •  Extensive vehicle coverage for most US, Asian and European vehicle makes

EZ400PRO Technical Parameters

Operating System: Android
Processor:Quad-core 1.6GHz Processor
Memory: 1G RAM,16G FLASH
Display: 7.0 inch touch screen with 1024×600 resolution
Sensors: Gravity Sensor,Ambient Light Sensor
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
Power and Battery: 4000mAh, 3.7V lithium-polymer battery
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension (L*W*H): 218*150*29mm

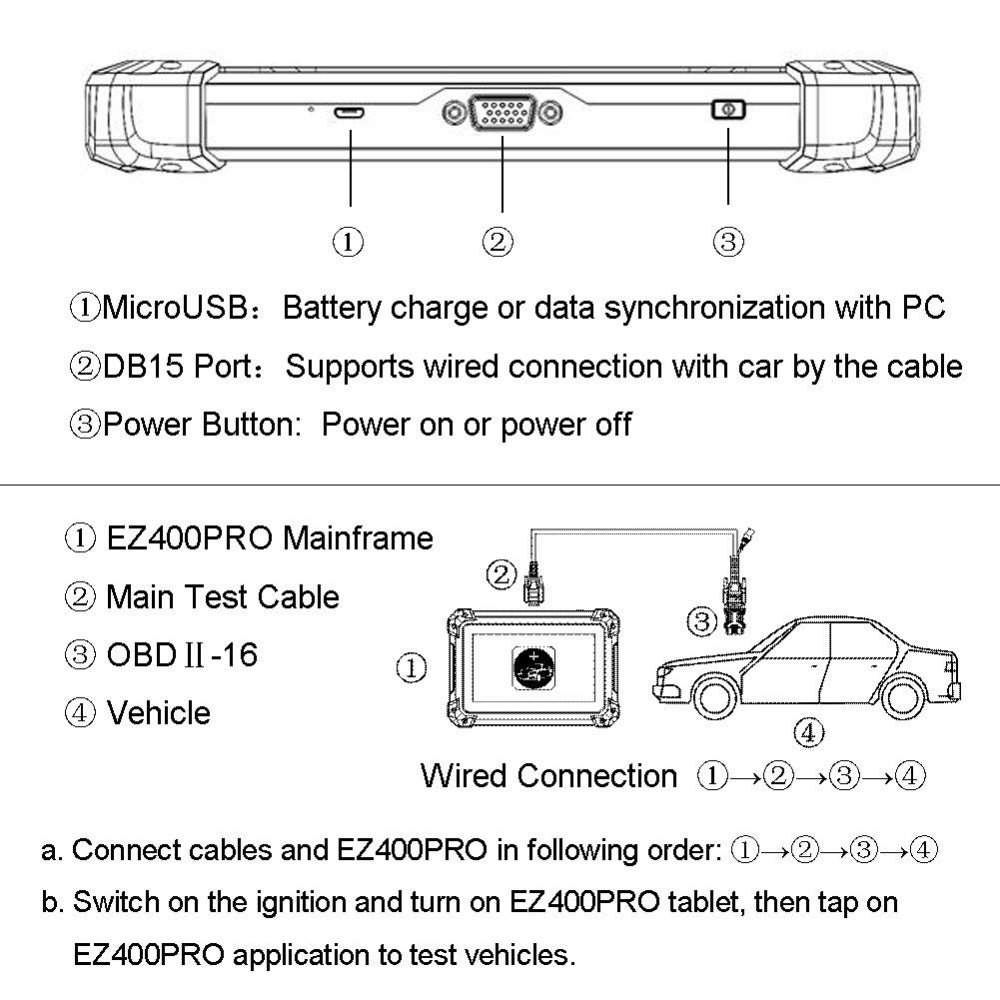

Tap on EZ400PRO application, the main interface and sub-menus shows up as below.

Precautions Before Use

  • 1. The vehicle power supply has to meet the normal voltage limits DC4.8V---5V.
  • 2. When pull and plug test wire harness, users should pinch the front-end of the wire harness to pull and plug, not pull the middle section of the wire harness. Users should check the corresponding direction of the port and plug in horizontally when they plug the wire harness, instead of inserting in an oblique way, which may damage the terminal.
  • 3. When taking some special functions tests, users are required to operate the device according to operating instructions. For vehicle,it has to strictly meet the requirements, for example, the conditions that some vehicle models need to be reached are as follows:
  • engine temperature 80℃/105℃,turn  off the loads (such as headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.
  • 4. The ECU for Chinese domestic vehicle models are relatively disorderly, so when users meet conditions, such as the car can not be tested or the test data is wrong, they should consider whether the selected menu corresponds to the tested electronic control system, or they can find the car ECU and select the right menu according to the model number on the ECU label.
  • 5. If users can not find the tested vehicle model or electronic control system in EZ400PRO test menu, they may need to update the software or consult Xtool technical service department
  • 6. Banned to have connection test by using harness not from Xtool to avoid unnecessary losses.
  • 7. Banned to power off directly in the communication between EZ400PRO and vehicle. Users should cancel the task and return to the main interface, then power off.
  • 8. The device should be put and lifted slightly to avoid collision when using EZ400PRO. When click the screen, touch it gently to guarantee the service life of the touch screen.
  • 9. During long period of non-use, please disconnect the power and turn it off.

Different vehicles different menus.

Mainly Function:

Read ECU
Read DTCs
Clear DTCs
Record DTCs trouble codes
Read Live Data
Actuation/Ative/ Components Test.

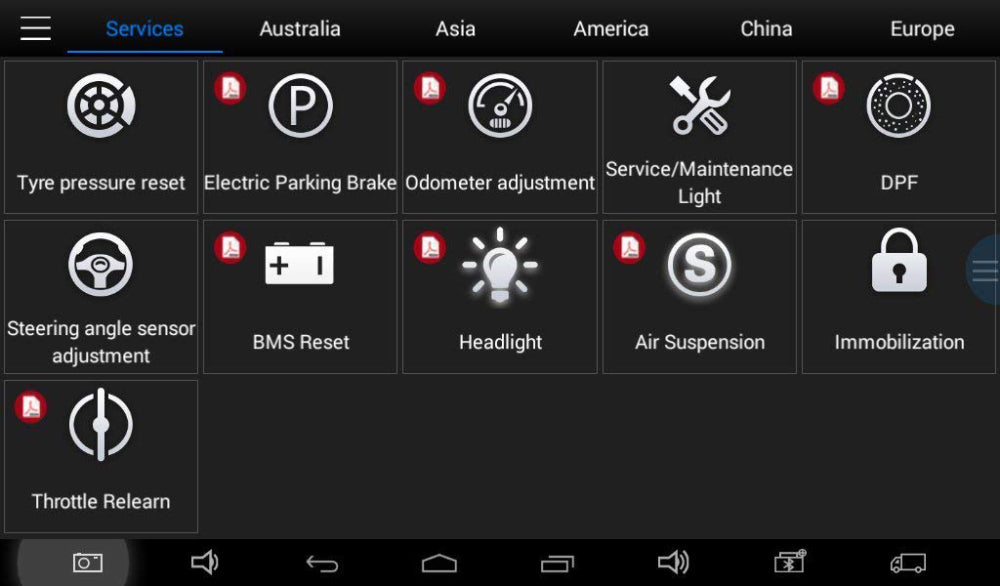

The diagnostic interface comes up as below.

Users can choose menu based on their actual needs:

selection for Europe means entering European cars menu, selection for Asia means entering Asian cars menu, selection for America
means entering American cars menu, selection for China means entering Chinese cars menu. Users also can input vehicle model to search.

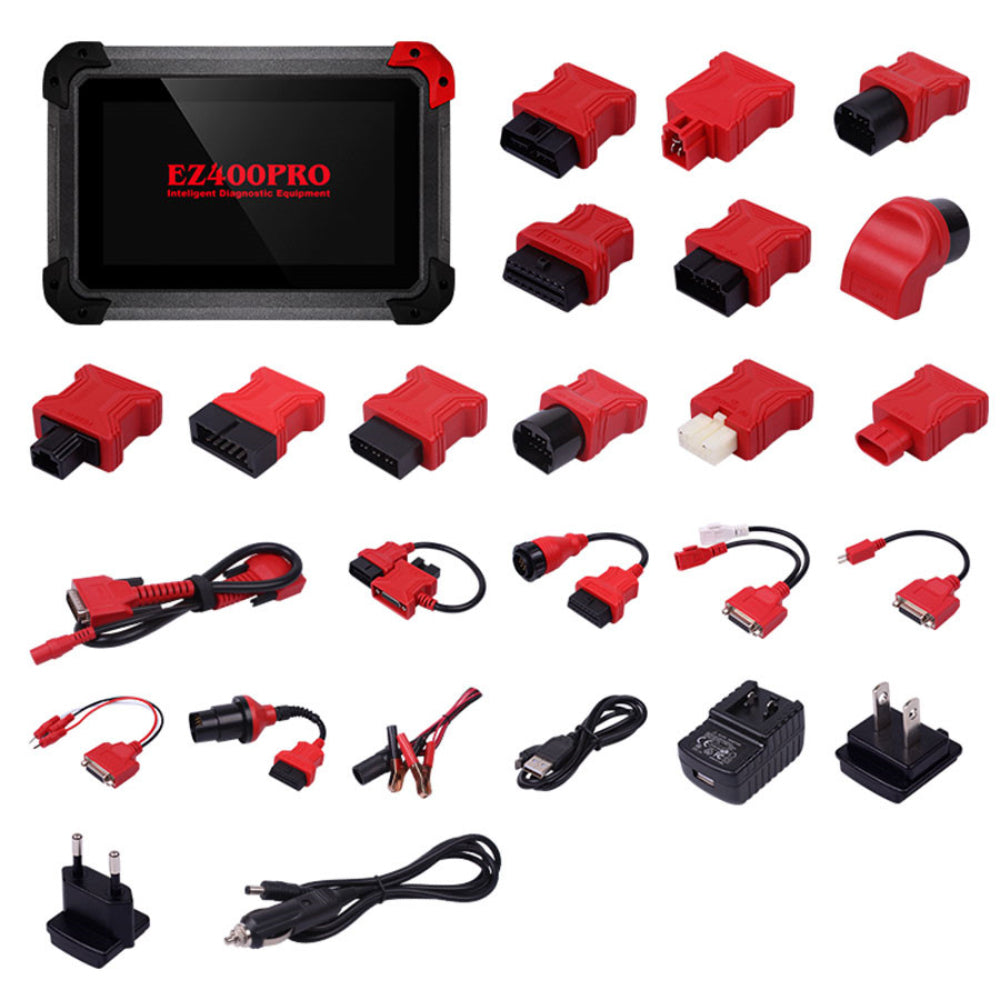

Package includes:

1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x HYUNDAI/KIA-10
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x MAINCABLE
1pc x Battery Cable
1pc x Cigar Lighter Cable
1pc x EZ400PRO Tablet
1pc x Charger for Tablet
1pc x Charger US Adapter
1pc x Charger EU Adapter
1pc x MicroUSB Cable
1pc x Tool Case
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton

FAQ

Q: Can it be update ?
A: Yes, it can, free update cost


Q: Is there any update for this model ? If any please show me how to update
A: Yes, you can free update from offical website.


Q: Will this work on a uk nissan pivo 2009 ?
A: Yes,it worked on all nissan vehicles


Q: Will this work for a subaru forrester and impreza ?
A: It only support subaru card before 2010


Q: will this work with Japanese market vehicle?(sold in Japan) ?
A: Yes, it would


Q: Can this throttle body reset on my nissan or tida or nissan y12 wagon ?
A: yes, it can


Q: Will it work to program Mercedes 2003 e500 key and 2005 Chrysler Pacifica key ?
A: Yes, works perfectly

Q: Can it program keys for my 2005 Ford F-150 ?
A: Yes

Q: Will this read codes and program keys for a 2012 Dodge Journey ?
A: Yes, it works very well on fobs and key on all makes i have used it on

Q: Does it program remote control fobs also, or just the transponder keys? Is there a limit on the years of vehicles it will work on?
A: You can also do fobs, yes. It does most vehicles within the ranges of 2005-2015 some models newer than that. The best thing about the xtool pad is that it pulls pin and bcm codes. If your a locksmith such as I, you'll make money off the xtool without a doubt.



Xtool EZ400 Pro is Android Tablet and WiFi diagnostic Tool, with extensive vehicle coverage for most European, US, Asian makes. Support One-click software update via WIFI, Wireless diagnosis via Bluetooth.

Top reasons to get XTOOL EZ400 Pro :

  •   Easy registration with EZ400 PRO connected to WIFI
  •  Wireless diagnosis via Bluetooth
  •  One-click software update via WIFI
  •  Remote access
  • Diagnosis reports in PDF file
  •  Record and playback live data
  •  7 inch multi-touch screen
  •  On-board battery
  •  Extensive vehicle coverage for most US, Asian and European vehicle makes

EZ400PRO Technical Parameters

Operating System: Android
Processor:Quad-core 1.6GHz Processor
Memory: 1G RAM,16G FLASH
Display: 7.0 inch touch screen with 1024×600 resolution
Sensors: Gravity Sensor,Ambient Light Sensor
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
Power and Battery: 4000mAh, 3.7V lithium-polymer battery
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension (L*W*H): 218*150*29mm



Tap on EZ400PRO application, the main interface and sub-menus shows up as below.

Precautions Before Use

  • 1. The vehicle power supply has to meet the normal voltage limits DC4.8V---5V.
  • 2. When pull and plug test wire harness, users should pinch the front-end of the wire harness to pull and plug, not pull the middle section of the wire harness. Users should check the corresponding direction of the port and plug in horizontally when they plug the wire harness, instead of inserting in an oblique way, which may damage the terminal.
  • 3. When taking some special functions tests, users are required to operate the device according to operating instructions. For vehicle,it has to strictly meet the requirements, for example, the conditions that some vehicle models need to be reached are as follows:
  • engine temperature 80℃/105℃,turn  off the loads (such as headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.
  • 4. The ECU for Chinese domestic vehicle models are relatively disorderly, so when users meet conditions, such as the car can not be tested or the test data is wrong, they should consider whether the selected menu corresponds to the tested electronic control system, or they can find the car ECU and select the right menu according to the model number on the ECU label.
  • 5. If users can not find the tested vehicle model or electronic control system in EZ400PRO test menu, they may need to update the software or consult Xtool technical service department
  • 6. Banned to have connection test by using harness not from Xtool to avoid unnecessary losses.
  • 7. Banned to power off directly in the communication between EZ400PRO and vehicle. Users should cancel the task and return to the main interface, then power off.
  • 8. The device should be put and lifted slightly to avoid collision when using EZ400PRO. When click the screen, touch it gently to guarantee the service life of the touch screen.
  • 9. During long period of non-use, please disconnect the power and turn it off.

Different vehicles different menus.

Mainly Function:

Read ECU
Read DTCs
Clear DTCs
Record DTCs trouble codes
Read Live Data
Actuation/Ative/ Components Test.

The diagnostic interface comes up as below.

Users can choose menu based on their actual needs:

selection for Europe means entering European cars menu, selection for Asia means entering Asian cars menu, selection for America
means entering American cars menu, selection for China means entering Chinese cars menu. Users also can input vehicle model to search.

Package includes:

1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x HYUNDAI/KIA-10
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x MAINCABLE
1pc x Battery Cable
1pc x Cigar Lighter Cable
1pc x EZ400PRO Tablet
1pc x Charger for Tablet
1pc x Charger US Adapter
1pc x Charger EU Adapter
1pc x MicroUSB Cable
1pc x Tool Case
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton

FAQ

Q: Can it be update ?
A: Yes, it can, free update cost


Q: Is there any update for this model ? If any please show me how to update
A: Yes, you can free update from offical website.


Q: Will this work on a uk nissan pivo 2009 ?
A: Yes,it worked on all nissan vehicles


Q: Will this work for a subaru forrester and impreza ?
A: It only support subaru card before 2010


Q: will this work with Japanese market vehicle?(sold in Japan) ?
A: Yes, it would


Q: Can this throttle body reset on my nissan or tida or nissan y12 wagon ?
A: yes, it can


Q: Will it work to program Mercedes 2003 e500 key and 2005 Chrysler Pacifica key ?
A: Yes, works perfectly

Q: Can it program keys for my 2005 Ford F-150 ?
A: Yes

Q: Will this read codes and program keys for a 2012 Dodge Journey ?
A: Yes, it works very well on fobs and key on all makes i have used it on

Q: Does it program remote control fobs also, or just the transponder keys? Is there a limit on the years of vehicles it will work on?
A: You can also do fobs, yes. It does most vehicles within the ranges of 2005-2015 some models newer than that. The best thing about the xtool pad is that it pulls pin and bcm codes. If your a locksmith such as I, you'll make money off the xtool without a doubt.
