XTOOL H6 PRO3 VCI Diagnostic Tool DoIP/CAN FD Topology Support with OBD1 Adapter Compatibility 2025
-
Express Estimated Delivery:Jul 14 - Jul 18
-
Free Shipping Method: Estimate dilevery 8-19 business days

Guarantee safe & secure checkout

XTOOL H6 PRO3 VCI Diagnostic Tool DoIP/CAN FD Topology Support with OBD1 Adapter Compatibility 2025
XTOOL H6 PRO3 coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles.
XTOOL H6 PRO3 provides fault code guidance for VAG and BMW.
XTOOL H6 PRO3 supports offline programming for Ford, Lincoln and Mazda.
XTOOL H6 PRO3 supports Online coding programming for VAG BMW and Benz.
XTOOL H6 PRO3 includes OBDI Connectors, and charging dock.

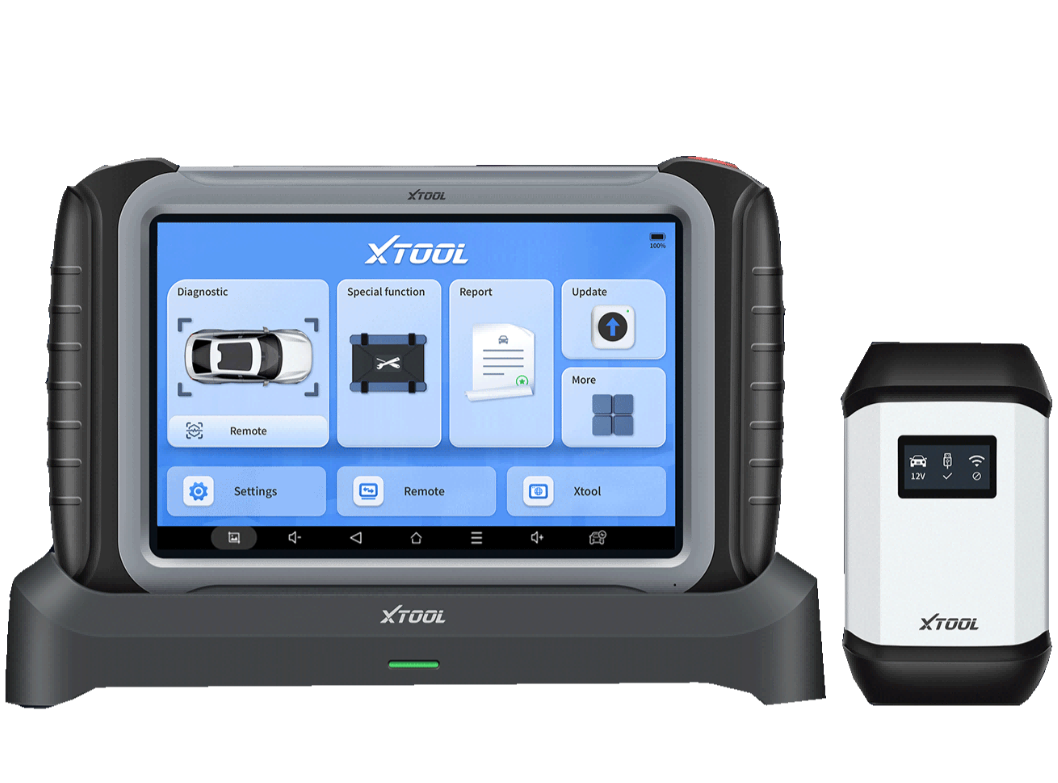

XTOOL H6 PRO3 Smart Diagnosis System with VCI Box Supports DoIP/CAN FD
H6Pro 3 is an automotive smart diagnostic system designed for mechanics, electricians, and auto repair stores. It supports basic diagnostic functions such as reading ECU version information, reading/clearing fault codes,
live data, and freeze frames for full systems, it also supports abundant special functions under the system menu, ADAS calibration, programmable module installation, ECU coding, and online ECU programming.
When scanning the whole system, it supports both the topology mapping and list modes, which can be switched freely. Also supported are 42 common special functions such as throttle matching, ABS bleed, service light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage makes it available for over 85 brands and 10,000 vehicles
Xtool H6 Pro3 Diagnostic Tool User Manual

Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles.Provides fault code guidance for VAG and BMW.Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz. Includes OBDI Connectors, and charging dock.
XTOOL H6 PRO3 Highlights:
- Dual Wi-Fi Connection
- 6400mAh - 6hrs Continuous Use / 8MP Rear Camera
- New VCI Protocols: DoIP/CAN FD
- Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Provides fault code guidance for VAG and BMW.
- Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz
- Perform ADAS Systems Calibrations for camera and radars
- Includes OBDI Connectors, and charging dock
- 1 years Warranty & 3 Years Software Subscription




XTOOL H6 PRO3 Specifications:
Operating System:Android 10.0
Processor:2.2GHz+1.8GHz Octa-core Processor
Memory:8G+128G
Display:10.1-inch, 1920×1200P
Camera:8.0 Megapixel, AF with Flashlight
Auto Input/Output:Microphone, Speaker
Dimension (L×W×H):309.2×188.9×34.9 mm
Communication Method:Wi-Fi, USB
Connectivity:Type-C
Working Voltage:9-32V
Battery:6400 mAh, 7.3V
Working Temperature:0 to 40℃
Storage Temperature:-10 to 50℃
Compatible Protocol:CANFD, DoIP
XTOOL H6 PRO3 Package Includes:
-
Accessories
- Color Carton
- Packing List
- Certificate of Quality
- Tool Case
- Quick Start Guide
-
Main Units
- Tablet
- VCI Box
- Type C to Type-A Data Cable
- Type C to Type-B Data Cable
- Type C to Type-C Charger Cable
- PD Supply Charging Adapter US
- Charging Adapter EU
- Charging Adapter UK
- Cigar Lighter Power Plug
-
Test Connectors
- DB15 Main Cable
- OBD II-16
- HONDA-3
- BMW-20
- BENZ-14
- BENZ-38
- TOYOTA-17
- MAZDA-17R
- KIA-20
- HYUNDAI/KIA-10
- NISSAN-14
- GM/DAEWOO-12
- UNIVERSAL-3
- SUZUKI-3
- FIAT-3
- CITROEN-2
- AUDI-4
- MITSUBISHI-12+16

Xtool H6 Pro3 VS H6W2 VS H6E2
