XTOOL HD900 Eobd2 OBD2 CAN BUS Heavy Duty Truck Diagnostic Scanner XTOOL HD900 Code Reader XTOOL HD900 Eobd2 OBD2 CAN BUS Heavy Duty Truck Diagnostic Scanner XTOOL HD900 Code Reader

KP203
0.9kg
Truck Diagnostic Tool
$199.00 $129.00 35%
-
+

XTOOL HD900 is the latest heavy duty truck Code Reader. Xtool HD900 heavy duty truck code reader Support SAE J1939(CAN) and SAE J1708/J1587 protocol heavy duty vehicles. HD900 Heavy duty truck diagnostic scanner is special for the professional vehicle repair or maintenance technicians.

XTOOL HD900 Heavy Duty Truck Code Reader Powerful, Fast, Economical!



HD900 is a high-end and new style auto diagnostic device developed by XTOOL, which is designed for the professional vehicle repair or maintenance technicians.

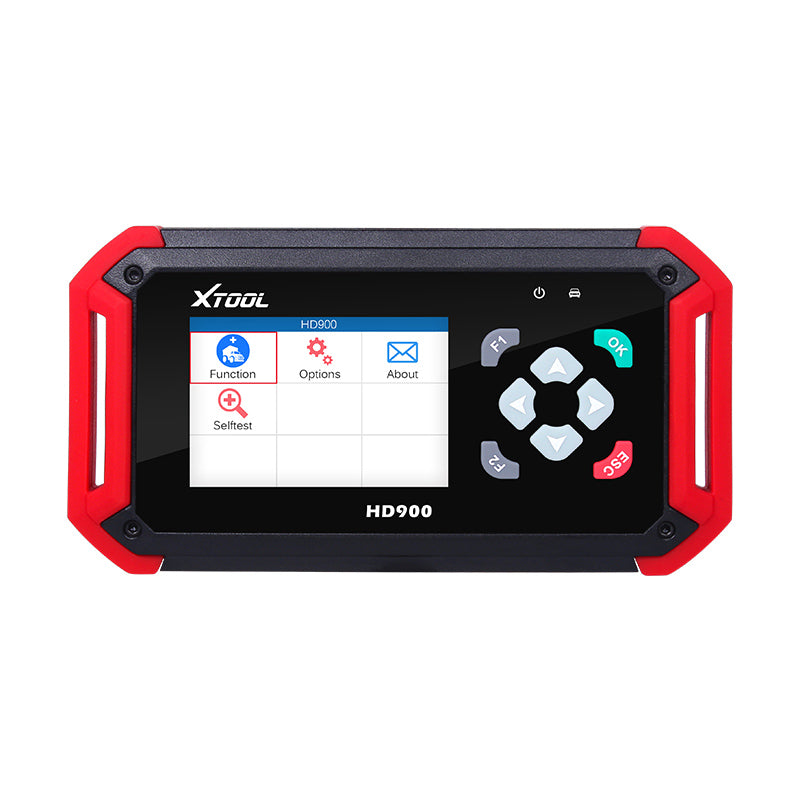

l  Layout of HD900

2

34



XTOOL HD900 Code Reader Features:

*Large easy-to-read Color LCD screen

*Access to generic and manufacturer specific codes

*Easily determines the cause of the “Check Engine Light” (MIL)

*Turns off Check Engine Light (MIL), clears codes and resets monitors

*Displays DTC definitions on screen

*Displays Live Data readings in real time

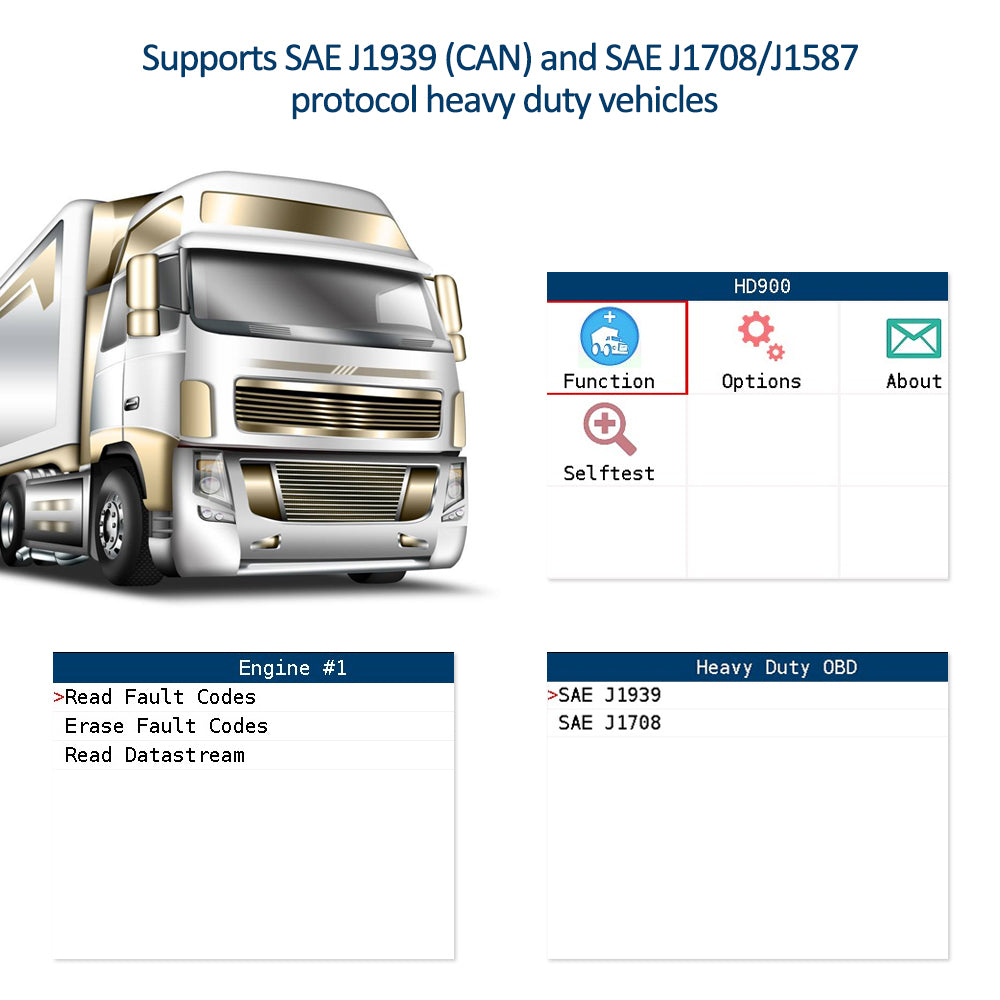

*Support SAE J1939(CAN) and SAE J1708/J1587 protocol heavy duty vehicles



XTOOL HD900 Code Reader Functions:

Read Diagnostic Trouble Codes
Clear Diagnostic Trouble Codes
View Live Data
MIL Status
O2 Sensor Test
EVAP system test
Retrieve vehicle information (VIN, CIN and CVN)



Connect to the vehicle directly with cable



5

①  HD900 Mainframe

②  Main Test Cable

③  6/9 Pin Truck Connectors

④  Vehicle

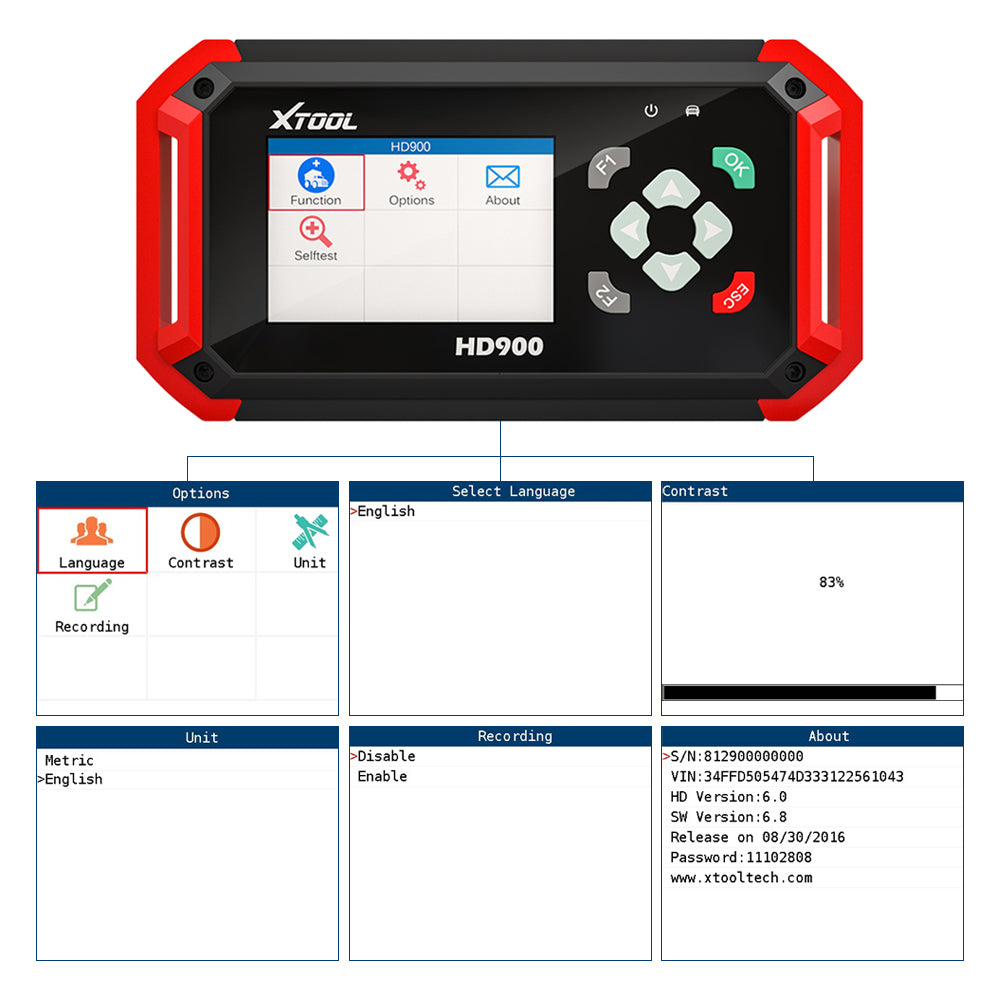

Main Interface

1



Function: Do OBDII diagnosis by choosing the corresponding vehicle

2

Protocol.

34

Options: Set language, adjust contrast, choose unit and make recording.

5678

9

About: Show the detailed information of HD900, such as serial number, hardware and software version, password, etc.

10

Update

Enter http://www.xtooltech.com;

Click One Click Upgrade to download and install the Upgrade Tool;

111

Connect the HD900 mainframe to the computer via USB cable;

Open the Upgrade Tool, input the Product SN and Password, then click Login;

11

Click Upgrade.

222

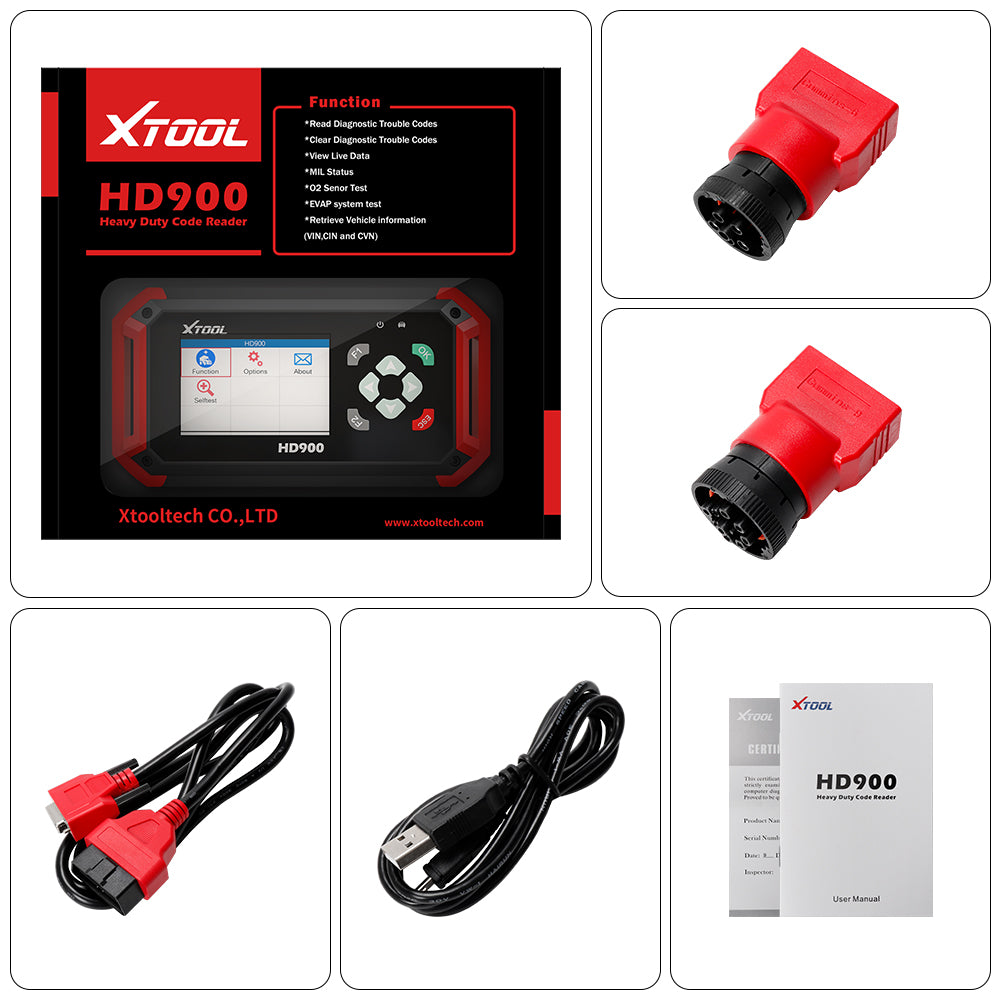

XTOOL HD900 Code Reader Packing List:

1pc x HD900 Mainframe
1pc x Test Cable
1pc x Certificate of Quality
1pc x For Cum-m-ins-6
1pc x For Cum-m-ins-9
1pc x Micro USB Cable
1pc x Certificate of Quality
1pc x User Manual



XTOOL HD900 is the latest heavy duty truck Code Reader. Xtool HD900 heavy duty truck code reader Support SAE J1939(CAN) and SAE J1708/J1587 protocol heavy duty vehicles. HD900 Heavy duty truck diagnostic scanner is special for the professional vehicle repair or maintenance technicians.

XTOOL HD900 Heavy Duty Truck Code Reader Powerful, Fast, Economical!



HD900 is a high-end and new style auto diagnostic device developed by XTOOL, which is designed for the professional vehicle repair or maintenance technicians.



l  Layout of HD900

2

34



XTOOL HD900 Code Reader Features:

*Large easy-to-read Color LCD screen

*Access to generic and manufacturer specific codes

*Easily determines the cause of the “Check Engine Light” (MIL)

*Turns off Check Engine Light (MIL), clears codes and resets monitors

*Displays DTC definitions on screen

*Displays Live Data readings in real time

*Support SAE J1939(CAN) and SAE J1708/J1587 protocol heavy duty vehicles



XTOOL HD900 Code Reader Functions:

Read Diagnostic Trouble Codes
Clear Diagnostic Trouble Codes
View Live Data
MIL Status
O2 Sensor Test
EVAP system test
Retrieve vehicle information (VIN, CIN and CVN)



Connect to the vehicle directly with cable



5

①  HD900 Mainframe

②  Main Test Cable

③  6/9 Pin Truck Connectors

④  Vehicle



Main Interface

1



Function: Do OBDII diagnosis by choosing the corresponding vehicle

2

Protocol.

34

Options: Set language, adjust contrast, choose unit and make recording.

5678

9

About: Show the detailed information of HD900, such as serial number, hardware and software version, password, etc.

10

Update

Enter http://www.xtooltech.com;

Click One Click Upgrade to download and install the Upgrade Tool;

111

Connect the HD900 mainframe to the computer via USB cable;

Open the Upgrade Tool, input the Product SN and Password, then click Login;

11

Click Upgrade.

222



XTOOL HD900 Code Reader Packing List:

1pc x HD900 Mainframe
1pc x Test Cable
1pc x Certificate of Quality
1pc x For Cum-m-ins-6
1pc x For Cum-m-ins-9
1pc x Micro USB Cable
1pc x Certificate of Quality
1pc x User Manual
