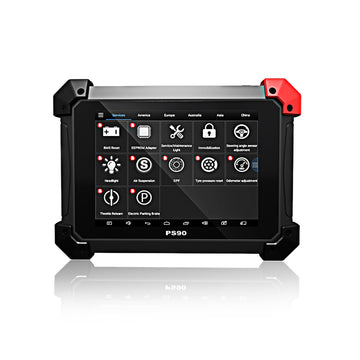

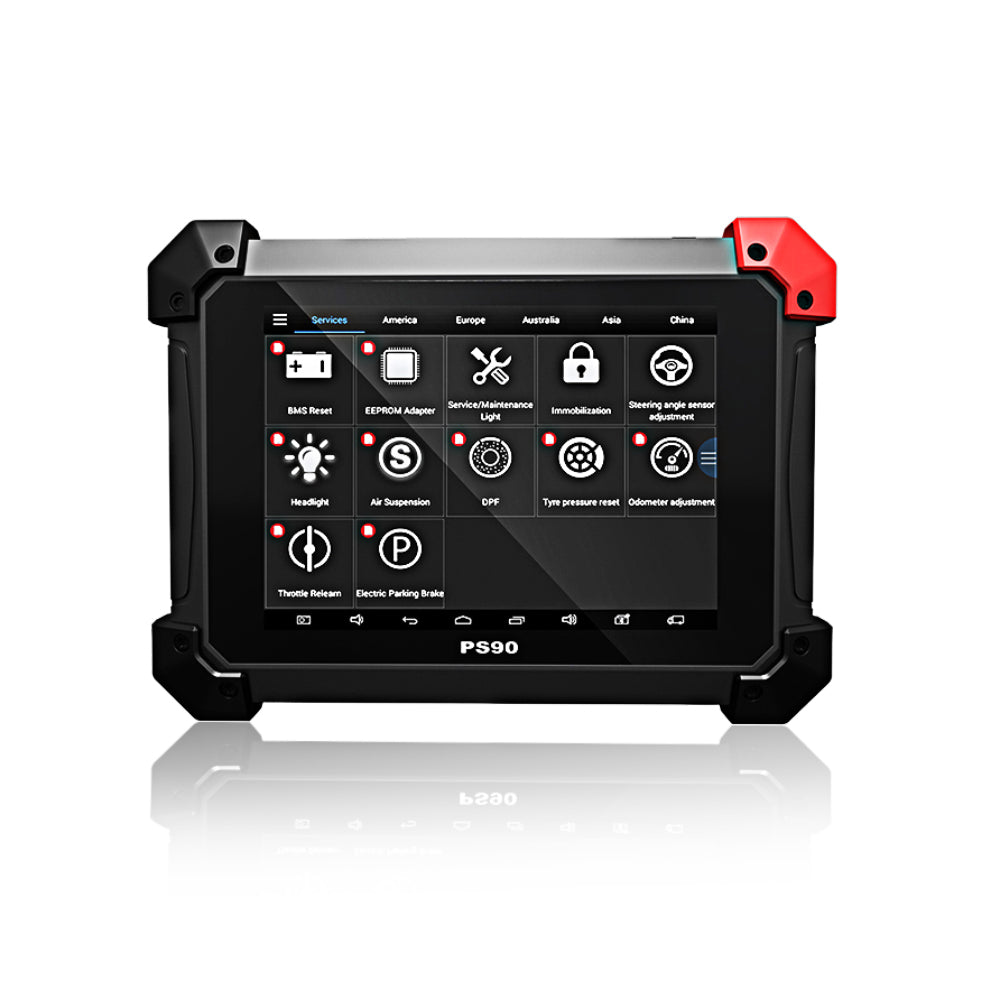

XTOOL PS90 GDS Bluetooth Automotive Diagnostic Android Touch Screen Tablet Tool For Car/Truck/Diesel/Gasoline

Xtool PS90 is a Pro Level scan tool with the added benefit of being a powerful tablet. Another fantastic new feature is the ability to send any issues with the unit or vehicles directly to the Xtool Engineering department from the built in help section. Connect wirelessly and be directly in touch with the manufacturer. Wifi also makes updates an easy process, unlike some tools.

Top 11 Reasons to Get Xtool PS90:

1. Diagnose via Bluetooth/Wifi

2. More than Diagnosis

3. One-click software update

4. Immobiliser

5. Mileage Adjustment

6. DPF Regeneration

7. EPS Steering Angle Sensor Calibration



XTOOL PS90 GDS Bluetooth Automotive Diagnostic Android Touch Screen Tablet Tool For Car/Truck/Diesel/Gasoline

Xtool PS90 is a Pro Level scan tool with the added benefit of being a powerful tablet. Another fantastic new feature is the ability to send any issues with the unit or vehicles directly to the Xtool Engineering department from the built in help section. Connect wirelessly and be directly in touch with the manufacturer. Wifi also makes updates an easy process, unlike some tools.

Main Features:

Scans engine, Reads/Clears fault codes, Auto key programming/immobilizer, Oil reset, Turns off service lights, Scans auto transmissions, Turns off SRS airbag lights, Turns off ABS lights, Live data stream.



Special Functions:

Key Programming, Mileage Correction, TPS, Oil Resetting, EPB, TPMS, Airbag Reset, ECU Reset (all vary by manufacturer)



XTOOL PS90 Support Language: English/Chinese



Top 11 Reasons to Get Xtool PS90:

1. Diagnose via Bluetooth/Wifi

2. More than Diagnosis

3. One-click software update

4. Immobiliser

5. Mileage Adjustment

6. DPF Regeneration

7. EPS Steering Angle Sensor Calibration



8. Tire Pressure Reset



9. Service light Reset



10. TPS Throttle Body Adaptation

11. EPB

XTool PS90 Vehicle Coverage:

America: America Ford, Chrysler, G-M, ACURA

Australia: Australia Ford(coming Soon), Holden(coming Soon)

Europe: V-W, A-udi, SEAT, SKODA, Mercedes Benz, BM-W, Citroen, Europe Ford, Fiat, Opel, Peugeot, Renault, Volvo

India: Mahindra, MARUTI, TATA

Japan: Honda, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota, Daihatsu, Isuzu

Korea: Hyundai, Kia, Ssangyong



V-W, A-udi (One click. No need to input any channel number)



The replacement of EPB brake pad supports for the following models:

V-W ( R36, CC, Magotan etc.)

A-udi ( A4L, A6L, Q5 etc.)

Seat

Skoda


Tire pressure warning light reset (manual operation):

G-M

BM-W

LandRover

Mercedes Benz

Porsche

Volvo



XTool PS90 Software Feature:

* Open source Android Operating System for fast boot-up and multitasking

* Easy and intuitive navigation makes finding what you need simple and fast

* Extensive vehicle coverage for most US, Asian and European vehicle makes

* Complete capabilities for codes, live data, actuation tests, etc

* Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

* Remote technical support for convenient demonstration, training and increased customer satisfaction

* Automatic Wi-Fi updates available in new software releases



XTool PS90 Hardware Feature:

* Extraordinarily powerful Rockchip 4Core processor

* 9.7” 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology

* Internal reliable and fast 8GB Solid State Drive for better performance

* Support TF card up to 16GB

* Built-in 5-megapixel rear camera with autofocus and flashlight

* Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources

* Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation

* USB, audio and auxiliary ports make it easy to connect accessories

* The VCI connects to the main unit via Bluetooth



PS2 Gasoline Series Mercedes-Benz V16.21Newest Update:

 Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish



This version (V16.21) issued the following:

1.Increase the Transmission, Steering angle,Tyrepressure loss alarm (activated) and other common special function.

2.Increase more than seven languages: German, French, Portuguese, Italian, Dutch, Arabic, farsi.


PS2/PS90 Diesel Series HINO V6.5:

Language version of the vehicle system software is currently released for Simplified English

This version (V6.5) issued the following:

1.Add memu and DTCs.Fix and modify software.



PS2/PS90 Gasoline Series CITROEN V9.20

 Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish,German, French, Portuguese, Italian, Dutch, Arabic, farsi.



This version (V9.20) issued the following:

1.Modify the C1 model menu tree points not in question

2. Add multilingual




PS2/PS90 Gasoline Series PEUGEOT V9.20

Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish,German, French, Portuguese, Italian, Dutch, Arabic, farsi.



This version (V9.20) issued the following:

1.Modify the parts of the system data flow point problem

2.Add multilingual




PS2Gasoline Series NISSAN V9.53

Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish,German, French, Portuguese, Italian, Dutch, Arabic, farsi.



This version (V9.53) issued the following:

1. New Support product PS65.

2. New Support product EZ300.



 PS2 Gasoline Series RENAULT V7.20

Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish



This version (V7.20) issued the following

1. Optimization of programs and data structures

2. add Arabic, German, Farsi, French, Italian, Dutch, Norwegian, Polish, Portuguese



PS2Gasoline Series ISUZU V7.10

 Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish



This version (V7.10) issued the following:

1.Support the Arabic language, German, farsi, French, Italian, Dutch, Norwegian, polish, Portuguese

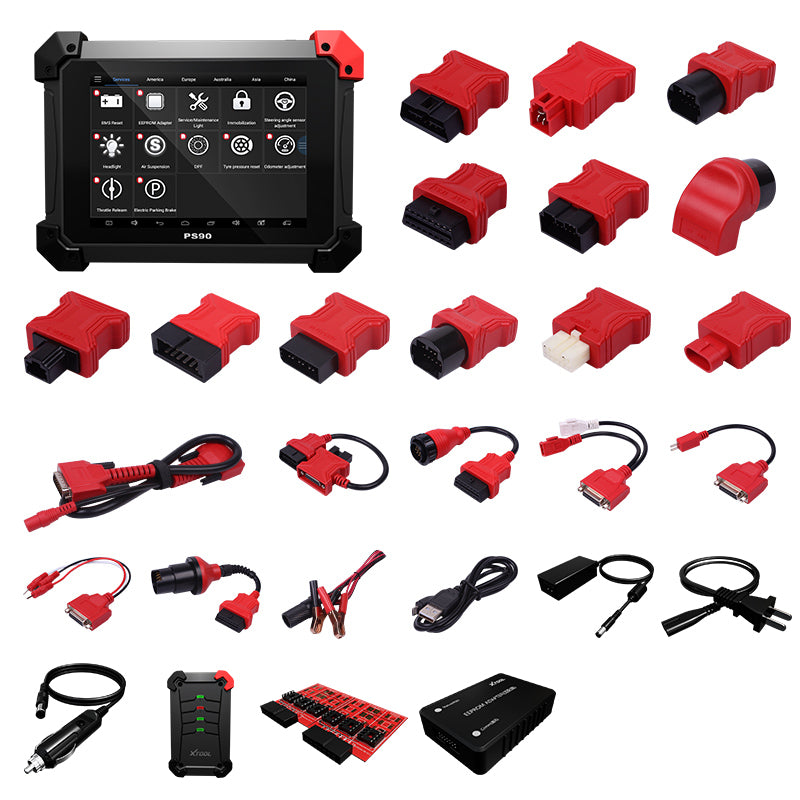

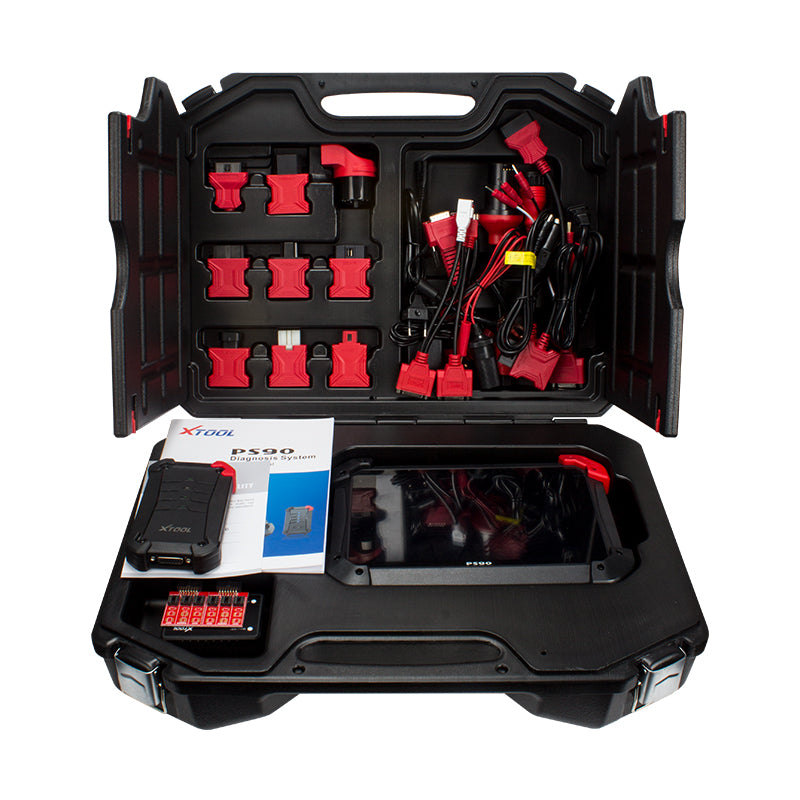

Package including:

PS90 Tablet

VCI BOX

Tool Box（Carton Sticker）

Carton

MAZDA-17R

KIA-20

FOR BM-W-20

HONDA-3

KIA HYUNDAI-10

OBD2-16

SELF TEST(OBD16)

TOYOTA-17

NISSAN-14

UNIVERSAL-3

FIAT-3

A-UDI-4

SUZUKI-3

CITROEN-2

MITSUBISHI12+16

Main Cable (DB15 Double Male Cable with Power)

USB3.0 MAIN CABLE

DC5V-2.5A Power Adapter

Micro USB Charger Cable

Battery Clipper

Cigarette Lighter

Certificate of Quality

Packing List

User Manual
