Professional Bnez EIS ESL Dashboard Gateway Testing Tool Supports FBS4 Work with VVDI MB TOOL, ABRITES Programmer Professional Bnez EIS ESL Dashboard Gateway Testing Tool Supports FBS4 Work with VVDI MB TOOL, ABRITES Programmer

ED575
1.5kg
Auto Key Programmer
$785.00 $755.00 4%

Professional Mercedes Benz EIS ESL Dashboard Gateway Testing Tool Supports FBS4 Working with Xhorse VVDI MB TOOL, ABRITES Programmer

EIS ESL Dashboard Gateway Testing Tool Features:

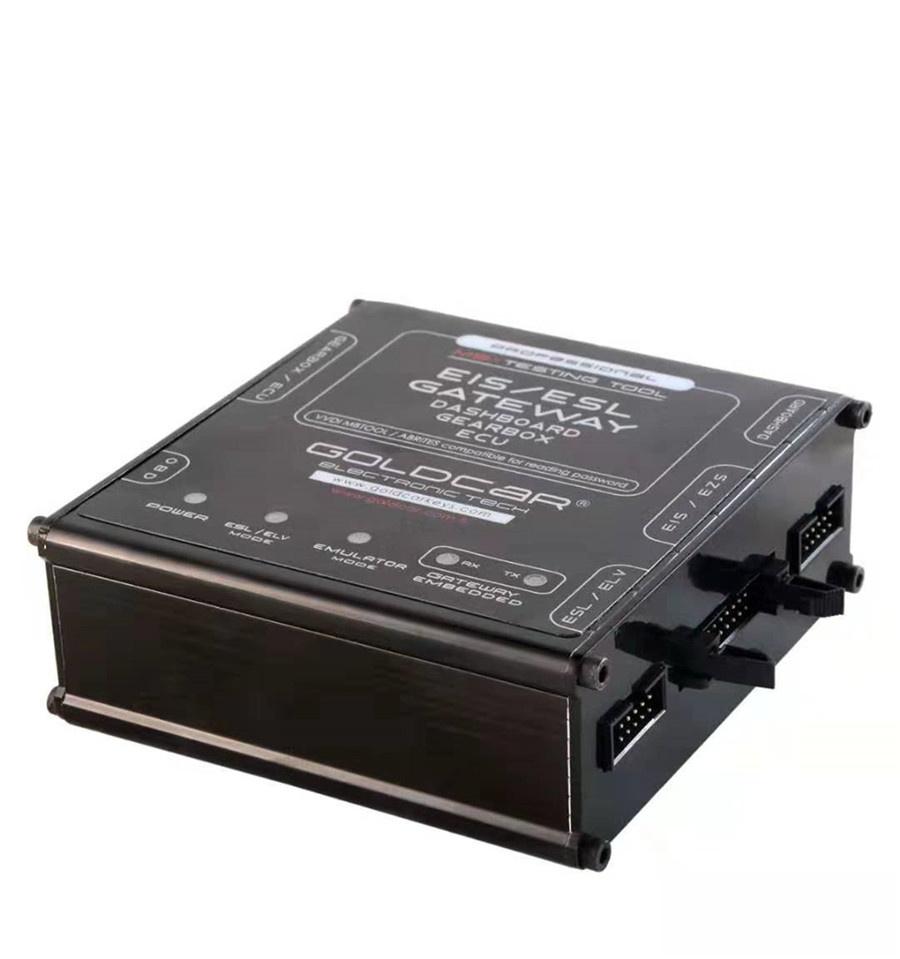

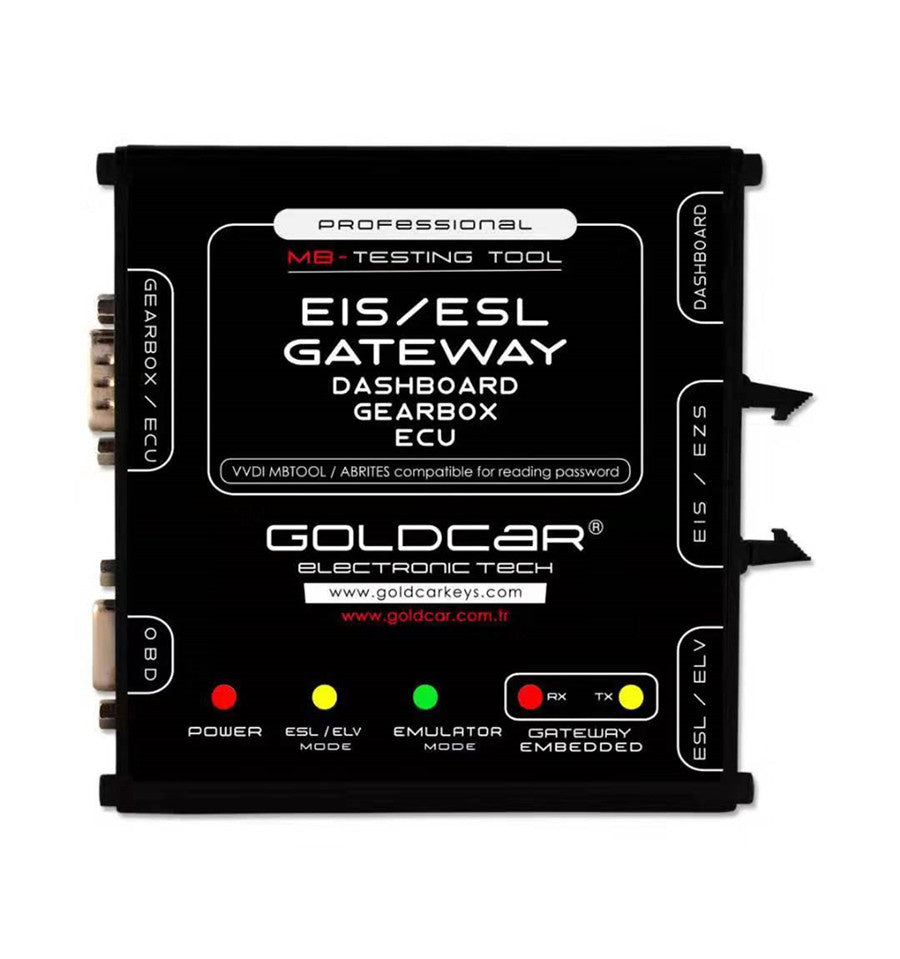

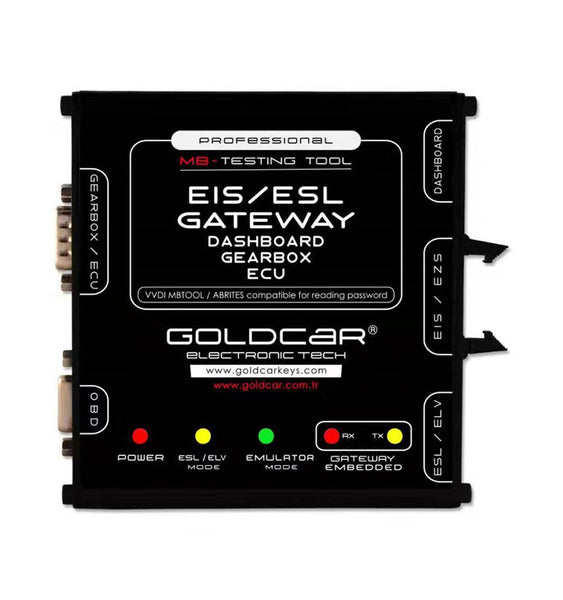

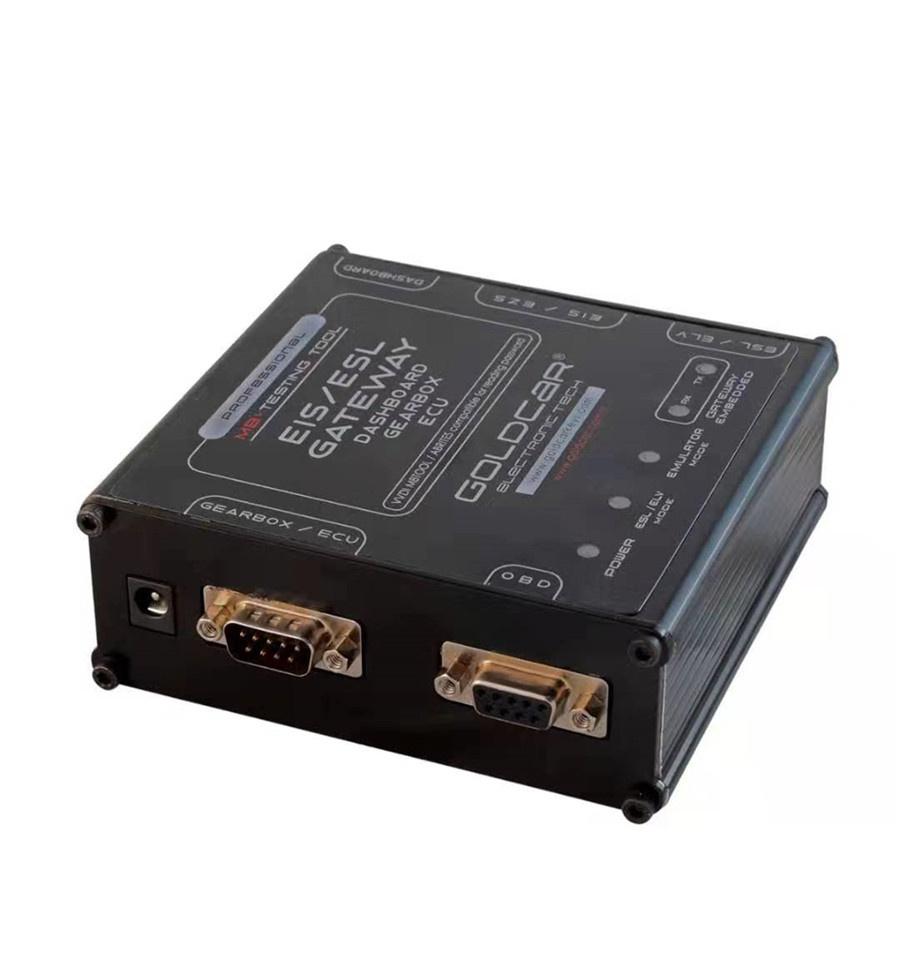

1. The new device designed for on-bench testing of EZS (EIS), ESL (ELV), Dashboard & gateway Comes with built in ESL Emulator inside and has automatically mode switching

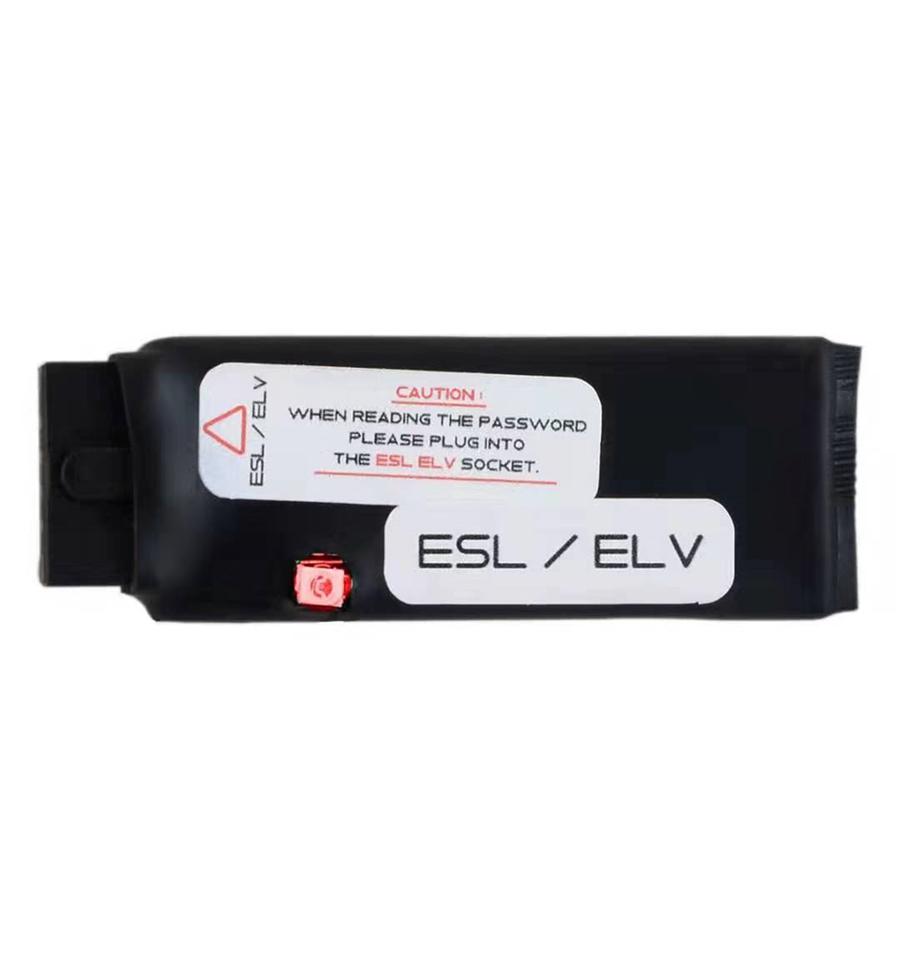

2. It enables you to test the EIS with the car ESL or with the emulator if original ESL / ELV is not available using Emulation mode.

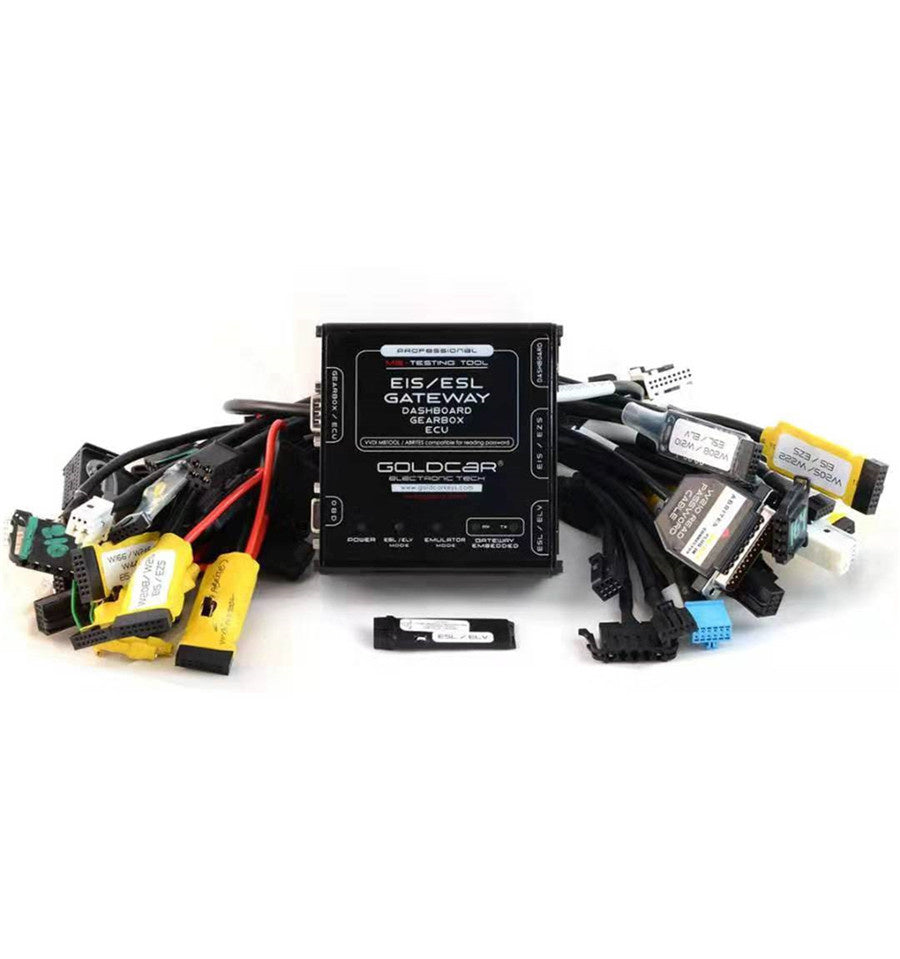

3. You can test both old (Motorola based EZS) and new (NEC based) units without the car - just connect them with special set of cables.

4. The new Generation comes with built in ESL / ELV emulator for W204, W207 to test the EIS without the original ESL / ELV (must be programmed before testing)

5. It support old and new FBS4 EIS testing

6. Built in Gateway enable you testing the EIS without connecting extra gateway.

 Note:  This new Mercedes Tester supports testing of FBS4 ECU



Supported EIS / EZS Testing, Password Reading:

• W208 / W210 (Embedded Emulator)
Support: password reading  Elv control  Obd control
• 209 / W211 (Embedded Emulator & Embedded Gateway)
Support: password reading  Elv control  Obd control
• W169 / W245 (Embedded Emulator & Embedded Gateway)
Support: password reading  Elv control  Obd control
• W203 / W639 / VITO (Embedded Emulator)
Support: password reading  Elv control  Dashboard control  Obd control
• W906 / CRAFTER / SPRINTER (Embedded Emulator)
Support: password reading  Elv control  Dashboard control  Obd control
• W215 / W220
Support: password reading  Obd control
• W204 / W207 / W212 (W204/W212 Embedded Emulator)
Support: password reading  Elv control  Obd control  Dashboard control
• W164
Support: password reading (Embedded Gateway)  Obd control
• W221
Support: password reading  Obd control
• W246
Support: password reading  Dashboard control  Obd control
• New - W212
Support: password reading  Dashboard control  Obd control
• New - W447 / W176 new model (FBS4  FBS3)
Support: password reading  Dashboard control  Elv control  Obd control
• New - W222 / W205 new model (FBS4  FBS3)
Support: password reading  Dashboard control  Obd control


Testing & Programming ESL / ELV Steering Lock:

W204 / W207 / W212 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )
W208 / 210 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )
W209 / W211 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )
W203 / W639 / VITO ELV cable ELV read and write OBD control ( EZS+ELV Personalize )
W906 / CRAFTER / SPRINTER ELV cable read and write OBD control ( EZS+ELV Personalize )
NEW - W447 / W176 ELV cable ELV read and write OBD control ( EZS+ELV Personalize )


NEW - GEARBOX ECU OUT

( VVDI MB Mercedes Benz ECU Renew Cables Adapters Kit compatible )



This EIS ESL Dashboard Gateway Testing Tool is compatible with many Mercedes key programming devices such as:

VVDI MB Tool
• Abrites AVDI
• ZED-FULL
• CGDI Mercedes
• MBE TOOLS
• And others …

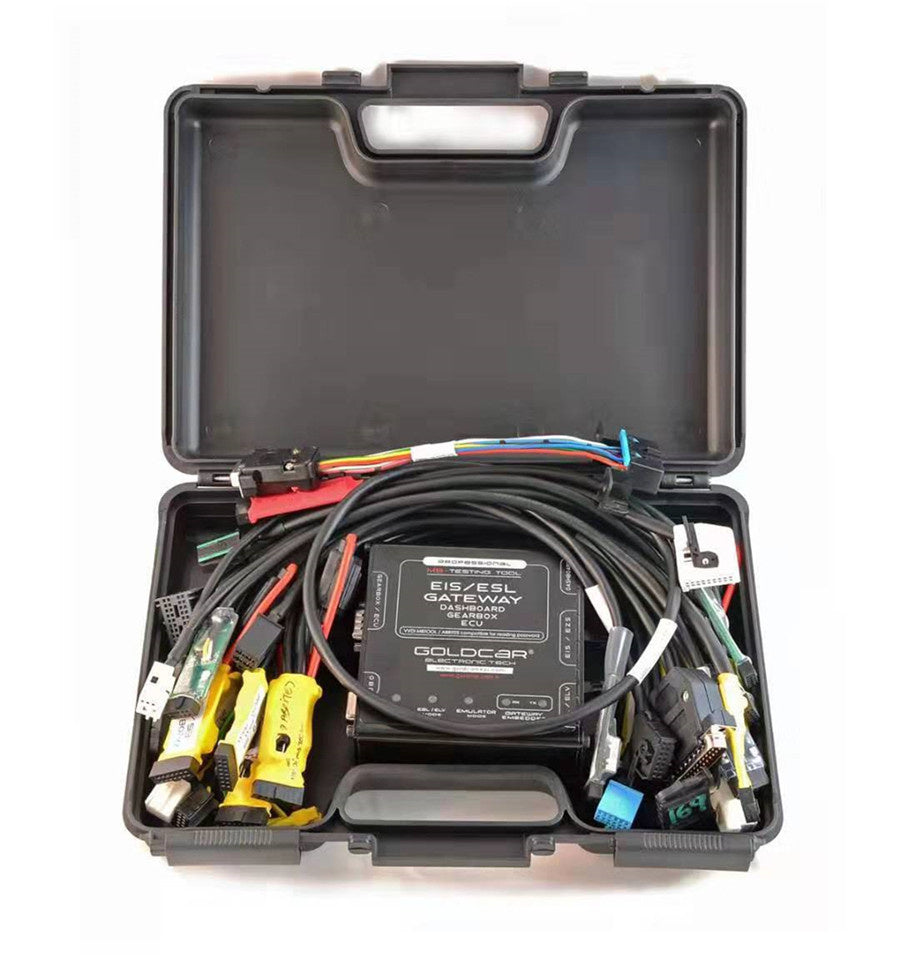

Package includes:

1pc x EIS ESL Dashboard Gateway Testing Tool
