LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels) USB Port
LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels) USB Port
LAUNCH X431 O2-2 Scopebox Oscilloscope Works with X431 PAD VII, PAD V, PAD III, Pro3 APEX Can detect high-level faults in various electrical components.

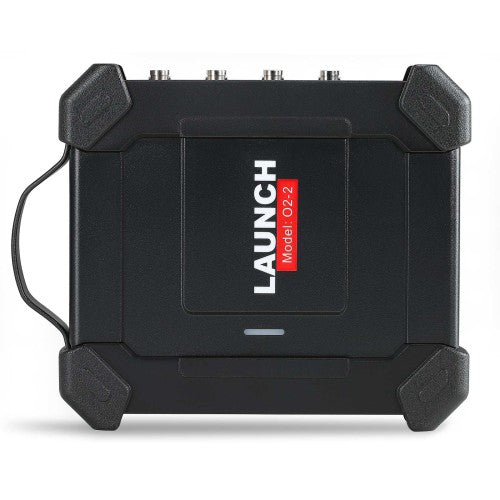

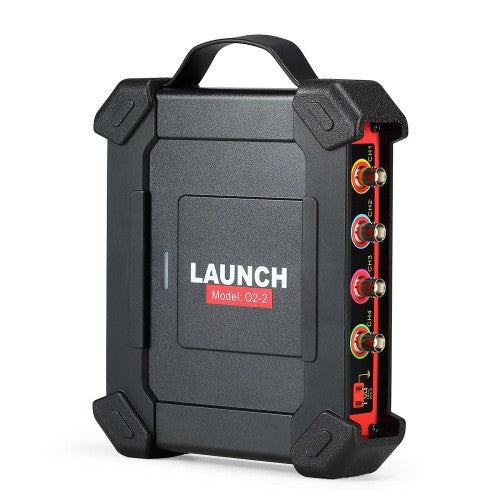

LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels)
Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool's functionality.
Compatible with Launch X431 PAD VII, PAD V, PAD III, X431 Pro Elite, X431 Throttle, Pro3 APEX, X431 Pad II AE, X431 Torque, X431 Turbo, X431 IMMO Elite, X431 IMMO Plus etc

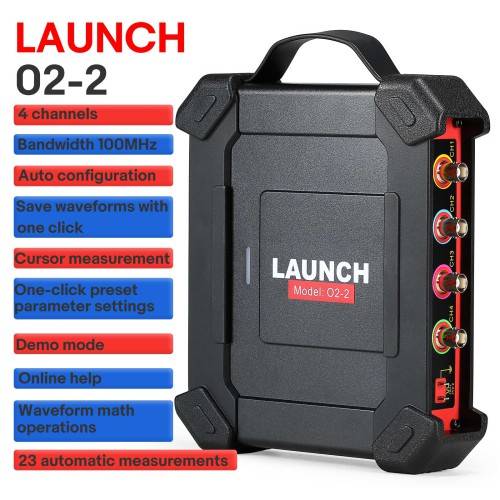

Launch O2-S2 Scopebox Features:
- Features the ability to record and playback high-resolution waveform data for future analysis.
- Choose of the waveform display speed for fast analysis
- Library of predetermined waveform signals, built-in memory
- Registration and storage of the tested signals for later analysis and troubleshooting
- Auto adjusting of all chart signals on all 4’s channels
- Separate grounding of each channel to minimize distortion of test signals
- High quality BNC connectors
- Complete set of adapters for ignition systems, sensors, connectors and other accessories
-Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.
-Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.
-Use the zoom in/out feature to review precise details.
-Customizable personal system settings that can be saved as configuration files for viewing.
-Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.
Launch O2-S2 Scopebox Specification:
|
Channels |
4 |
|
Bandwidth |
100MHz |
|
Rising Time |
3.5ns(typical) |
|
Accuracy |
±3% |
|
Input Impedance |
1M±1.5% |
|
Input Type |
Single-ended,BNC Connector |
|
Input Coupling |
DC, AC |
|
Overload Protection |
±200V on single input |
|
Timebase Ranges |
1ns~1ks(1 Channel) 1ns~1ks(2 Channels) 1ns~1ks(4 Channels) |
|
Vertical Resolution |
8bits |
|
Buffer Memory |
10M(for 4 Channels) |
|
Power Interface |
USB port, DC IN port |
|
Data Exchange Via |
USB |
|
Trigger Mode |
Normal, Auto and Single SEQ |
|
Advanced Triggers |
Edge, Pulse width |

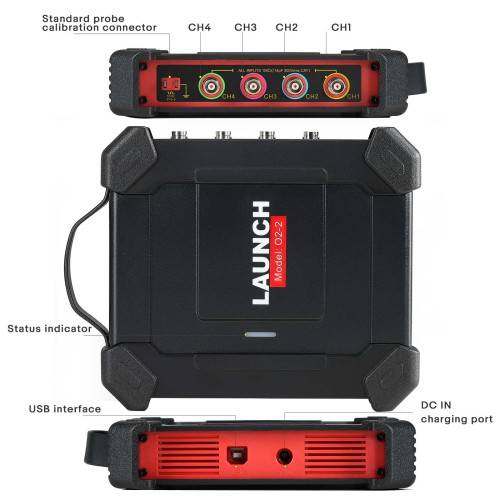

How to Connect the Cables?
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):
First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).
Note: * PADVII series tablets support USB power supply.
Second, connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

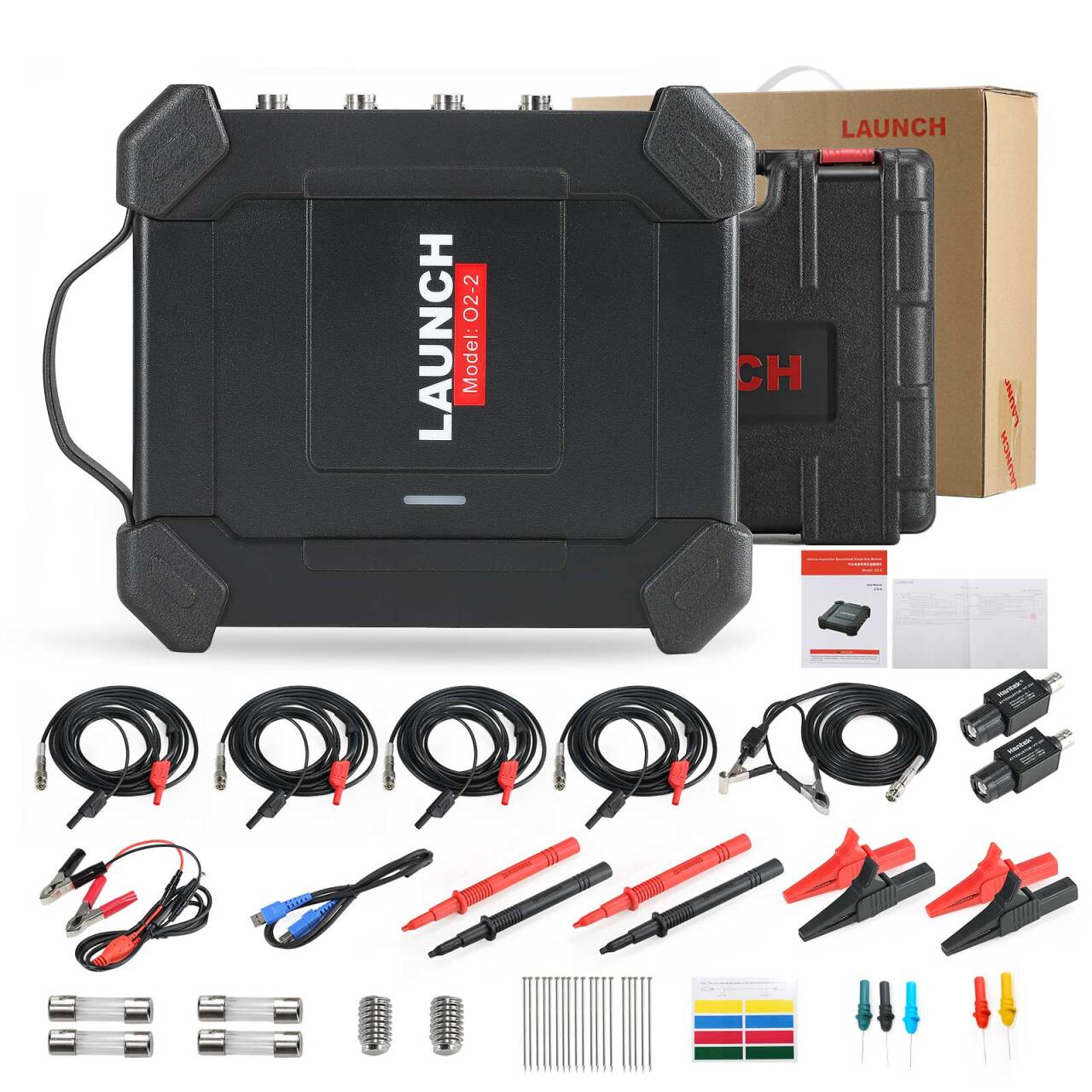

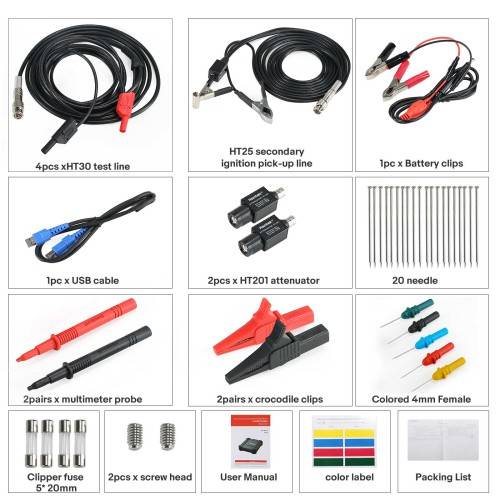

Launch O2-S2 Scopebox Packing List:
1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
